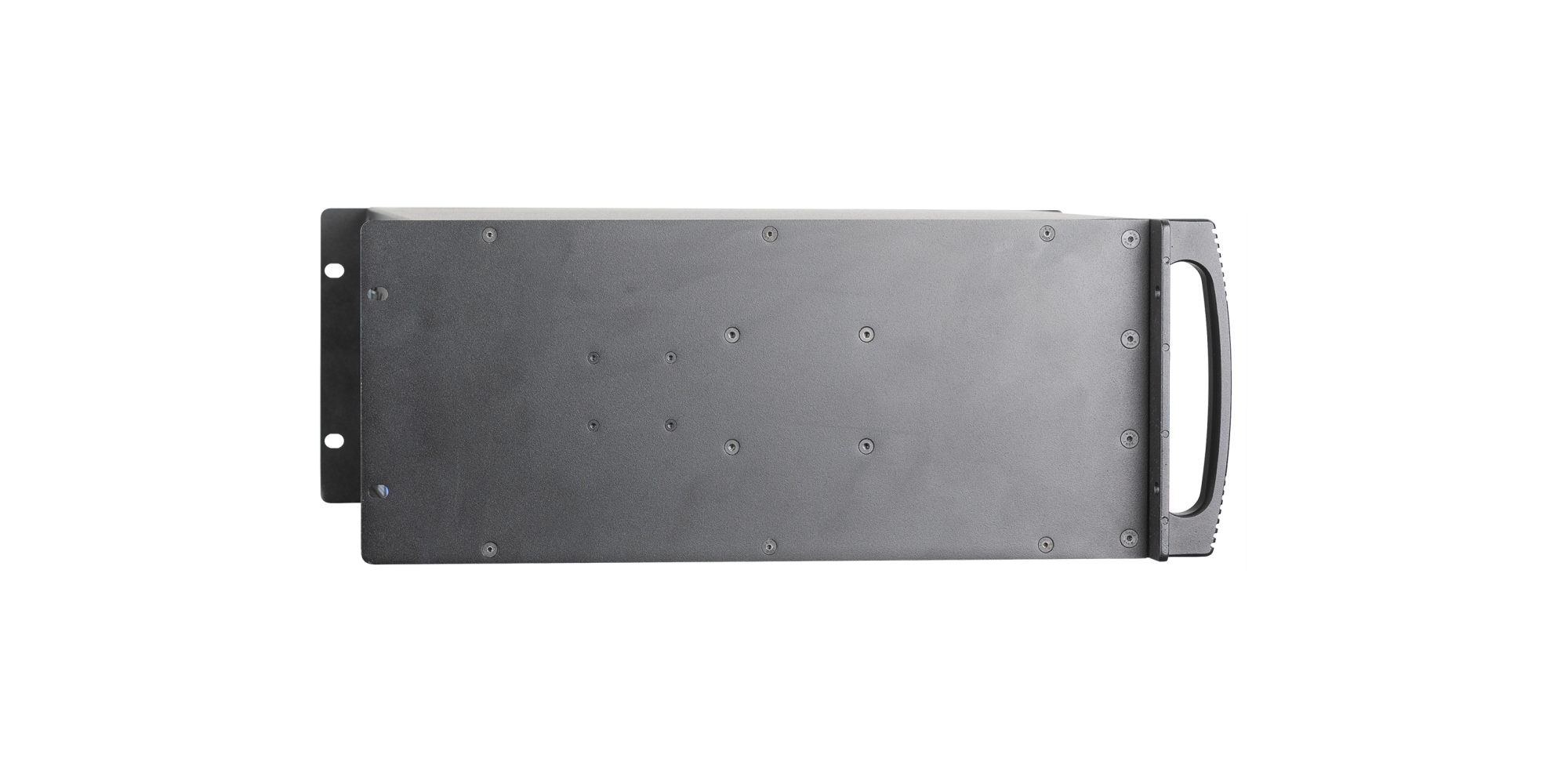

ESR2600D Amplifier with Control & Diagnostics

The ESR2600D is a two channel (stereo) three-way, active control and amplification system specially designed for the KV2 Audio ESR106 full range loudspeaker system. It houses all signal processing and amplification, as well as providing control and crossover functions for adding external subwoofer cabinets if required, utilizing external amplifiers. The ESR26000D is now configurable via the front panel or remotely using the KV2 Control & Diagnostics Tool. The ESR2600D incorporates six amplifiers consisting of two 100-watt, Class AB, push pull, low intermodulation amplifiers for high frequencies, two 200-watt, Class AB, push pull, low intermodulation design amplifiers for mids and two 1000-watt, high-efficiency, current-enhancing switching technology amplifiers for bass. The ESR2600D stereo configuration powers two ESR cabinets accordingly.

Download Product’s Data Sheet

Features

The amplifier compliment inside the ESR2600D Amplifier is as follows:

  • High Frequency - 2x 100-watt, Class AB, push pull, low intermodulation design
  • Mid Frequency - 2x 200-watt, Class AB, push pull, low intermodulation design
  • Low Frequency - 2x 1000-watt, high-efficiency, current-enhancing switching design

Configurable via the front panel or remotely using the KV2 Control & Diagnostics Tool



Applications

Specifically designed as the amplification and control unit for the ESR106 loudspeaker system in a 4RU mount module with integrated Control & Diagnostics.

  • Fixed Installations
  • Theatre and Music venues
  • Houses of worship
  • Classical and opera concerts

Product code

KVV 987 514 (250V)
KVV 987 513 (230V)
KVV 987 512 (115V)


Output Channels

Number of Channels2 (stereo)
Total Output Power2x 1300W

High Frequency Amplifier Specification

TypeClass AB - Push Pull - Low IM Design, Transformer balanced output
Rated Continuous Power100W
Distortion<0.02%
Operating Bandwidth2.4kHz to 40kHz

Mid Frequency Amplifier Specification

TypeClass AB - Push Pull - Low IM Design, Transformer balanced output
Rated Continuous Power200W
Distortion<0.02%
Operating Bandwidth450Hz to 2.4kHz

Low Frequency Amplifier Specification

TypeHigh efficiency, Current-enhancing switching design
Rated Continuous Power1000W
Distortion<0.02%
Operating Bandwidth20Hz to 450Hz

Signal Input

Input Sensitivity1.55V RMS
Input Impedance20kΩ (balanced)

Speaker Output

Speaker Output2x AP6 female

Features

NetworkEthernet: SNMP, Webserver

Power Requirements

Power Connector2x Neutrik PowerCon®
Operating Voltage115V / 230V / 250V
Operating Voltage Range100 to 120V@60Hz | 205 to 240V@50Hz | 225 to 260V@50Hz
Recommended Amperage2x10A 115V | 2x5A 230V | 2x5A 250V

Physical Dimensions

Height177 mm (6.97"), 4RU
Width481.4 mm (18.95")
Depth455.3 mm (17.93")
Weight36 kg (79.37lbs)


Product code

KVV 987 514 (250V)
KVV 987 513 (230V)
KVV 987 512 (115V)
