SL3000 Amplifier - Rack mounted

The SL3000 Amplifier is a three-way, active control and amplification system specifically designed for the KV2 Audio SL Series modular loudspeaker systems. The SL3000 Stereo Amplifier drives and controls one SL412 per channel and follows the typical KV2 holistic approach of matching components with high quality electronics for true direct performance. The SL3000 utilises a 1000-watt high efficiency – current enhancing, switch – mode technology, with linear active filter design for the low mid-section, a 200-watt class AB push pull low intermodulation design amplifier for the mid-range and a similar 100-watt design for the high frequencies. It houses all time alignment, phase correction, amplification and equalisation as well as providing an external subwoofer crossover output to run further subwoofer cabinets if needed.

Watch the product video

SL3000 Technical Data Sheet

Applications

Specifically designed as the amplification and control elements for the SL loudspeaker systems in a 4RU mount module

  • Fixed Installations

Product code

  • KVV 987 280 - SL3000 Amplifier - 250V
  • KVV 987 279 - SL3000 Amplifier - 230V
  • KVV 987 278 - SL3000 Amplifier - 115V


Features

  • High Frequency - 100-watt, Class AB, push pull, low intermodulation design
  • Mid Frequency - 200-watt, Class AB, push pull, low intermodulation design
  • Low Frequency - 1000-watt, high-efficiency, current-enhancing switch mode technology


Applications

Specifically designed as the amplification and control elements for the SL loudspeaker systems in a 4RU mount module

  • Fixed Installations

Product code

  • KVV 987 280 - SL3000 Amplifier - 250V
  • KVV 987 279 - SL3000 Amplifier - 230V
  • KVV 987 278 - SL3000 Amplifier - 115V


Output Channels

Number of Channels2 (stereo)
Total Output Power2x 1300W

High Frequency Amplifier Specification

TypeClass AB - Push Pull - Low IM Design, Transformer balanced output
Rated Continuous Power100W
Distortion<0.02%
Operating Bandwidth2,5kHz to 40kHz

Mid Frequency Amplifier Specification

TypeClass AB - Push Pull - Low IM Design, Transformer balanced output
Rated Continuous Power200W
Distortion<0.02%
Operating Bandwidth400Hz to 2,5kHz

Low Frequency Amplifier Specification

TypeHigh efficiency, Current-enhancing switch mode
Rated Continuous Power1000W
Distortion<0.02%
Operating Bandwidth35Hz to 400Hz

Signal Input

Input Sensitivity2.2V RMS
Input Impedance20kΩ (balanced)

Speaker Output

Speaker Output2x AP6

Power Requirements

Power Connector2x Neutrik PowerCon®
Operating Voltage115V / 230V / 250V
Operating Voltage Range100 to 120V@60Hz | 205 to 240V@50Hz | 225 to 260V@50Hz
Recommended Amperage2x10A 115V | 2x5A 230V | 2x5A 250V

Physical Dimensions

Height177.8 mm (7.0"), 4RU
Width481.4 mm (18.95")
Depth495 mm (19.5")
Weight39.2 kg (86.62lbs)


Product code

  • KVV 987 280 - SL3000 Amplifier - 250V
  • KVV 987 279 - SL3000 Amplifier - 230V
  • KVV 987 278 - SL3000 Amplifier - 115V

PDF

SL Series with SL2.15 User Guide

SL3000, SL412, SL2.15 and configurations



PDF

SL3000 Data Sheet

SL3000 Data Sheet



SKP

SL3000 230V SKP

SL3000 230V SketchUp



DWG

SL3000 115V 3D DWG

SL3000 115V 3D DWG



SKP

SL3000 115V SKP

SL3000 115V SketchUp



DWG

SL3000 230V 3D DWG

SL3000 230V 3D DWG



SKP

SL3000 230V SKP

SL3000 230V SketchUp



DWG

SL3000 250V 3D DWG

SL3000 250V 3D DWG



SKP

SL3000 250V SKP

SL3000 250V SketchUp



SKP

SL Series Sketchup

SL Series Sketchup



DWG

SL3000 2D DWG

SL3000 2D DWG



DWG

SL3000 - 3D

1:1 scale - clamping points - weight - dwg file



PDF

SL3000 - 2D

SL3000 2D Drawings



DWG

SL3000 230V 3D DWG

SL3000 230V 3D DWG





EPAK2500, EPAK2500R, ES1.0, ESR2800, ESR3000MkII, SL3000, SL412 Amphenol AP6 connector

Gallery

Product code

KVV 987 050



Description

- female - cable mount



EPAK2500, EPAK2500R, ES1.0, ESR2800, ESR3000MkII, SL3000, SL412 Amphenol AP6 connector

Gallery

Product code

KVV 987 051



Description

- male - cable mount



Cable Kit

Gallery

Product code

KVV 987 047



Description

- consist of four high-quality Amphenol AP cable assemblies designed for use with ES Series - 2 pcs LF15 - 1pc LF40 - 1pc MH60



Cable MH120

Gallery

Product code

KVV 987 126



Description

- 6 wire speaker cable - AP6 connectors - 12m (40ft) length - for Mid/Hi Module hook-up



Cable MH180

Gallery

Product code

KVV 987 127



Description

- 6 wire speaker cable - AP6 connectors - 18m (60ft) length - for Mid/Hi Module hook-up



Mid/Hi speaker cable MH60

Gallery

Product code

KVV 987 125



Description

- 6 wire speaker cable - AP6 connectors - 6m (20ft) - for Mid/Hi Module hook-up

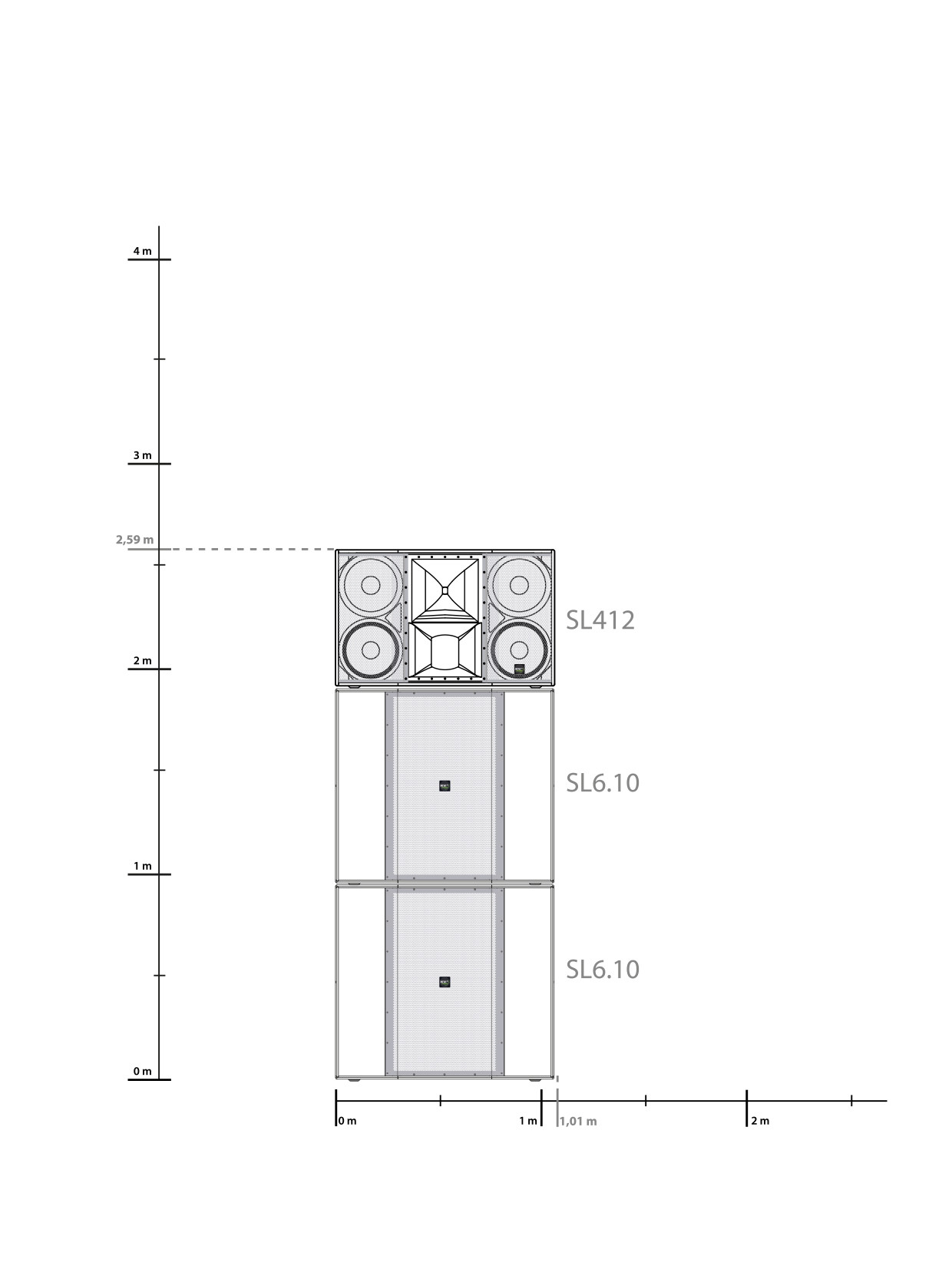

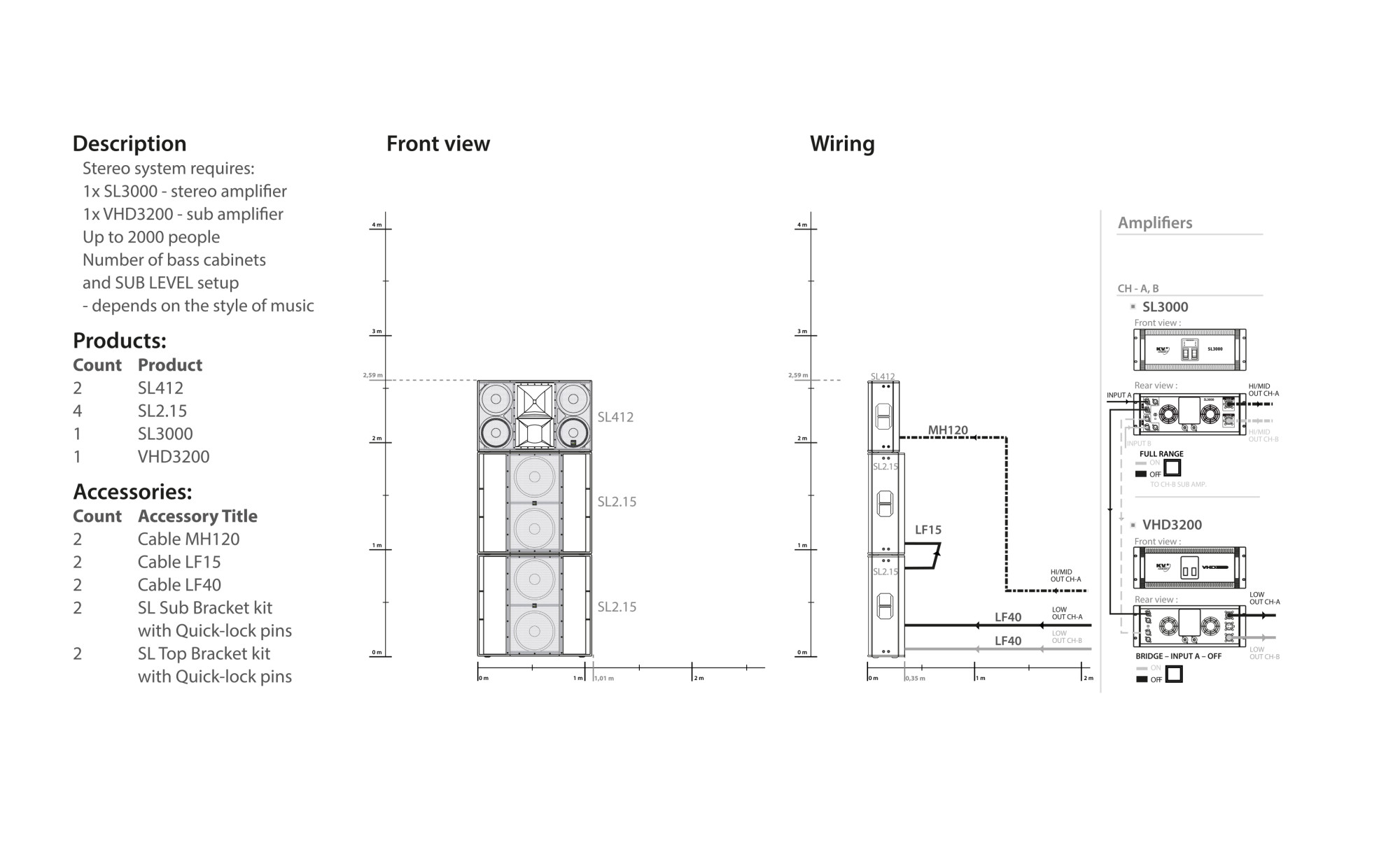

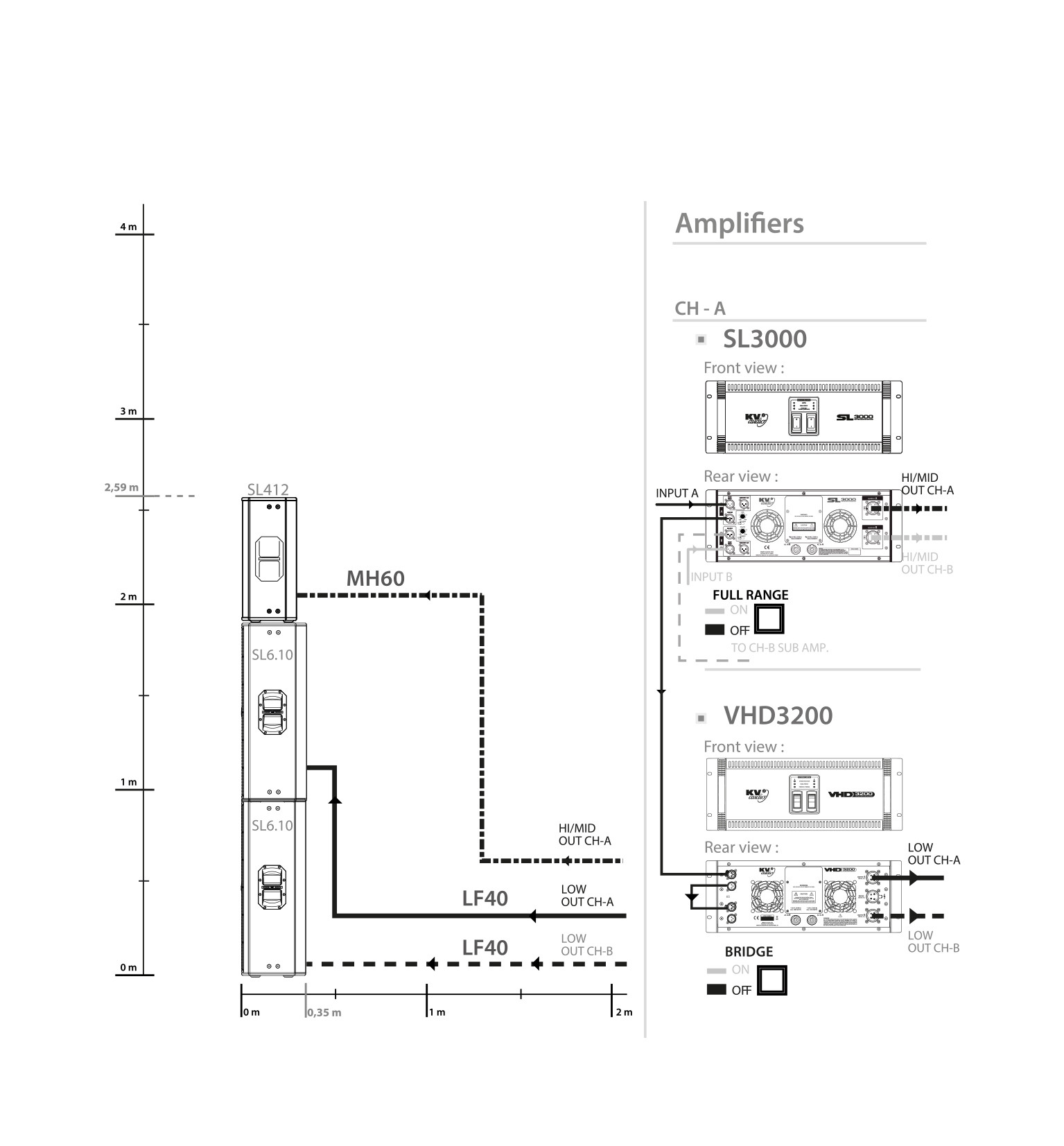

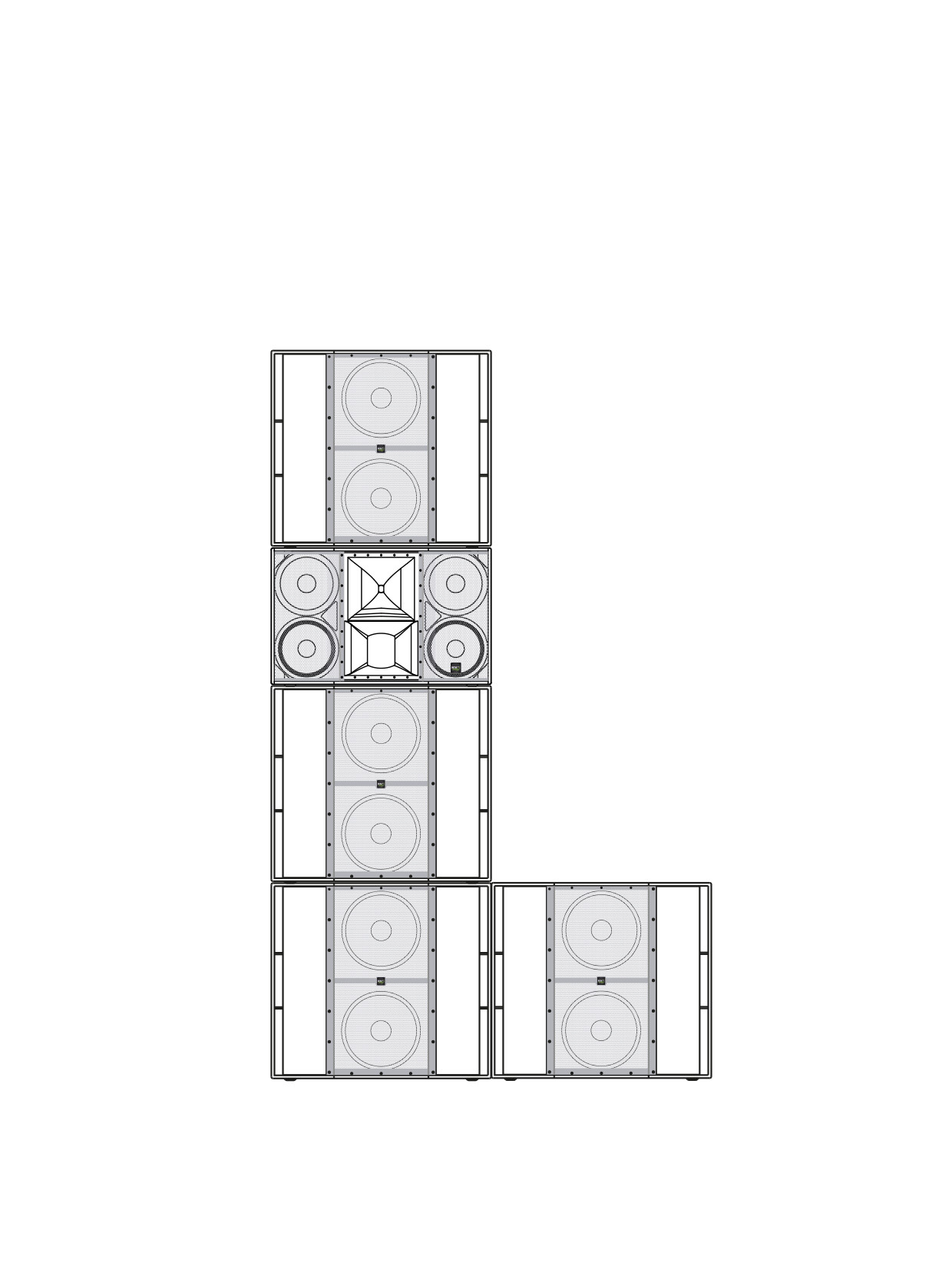

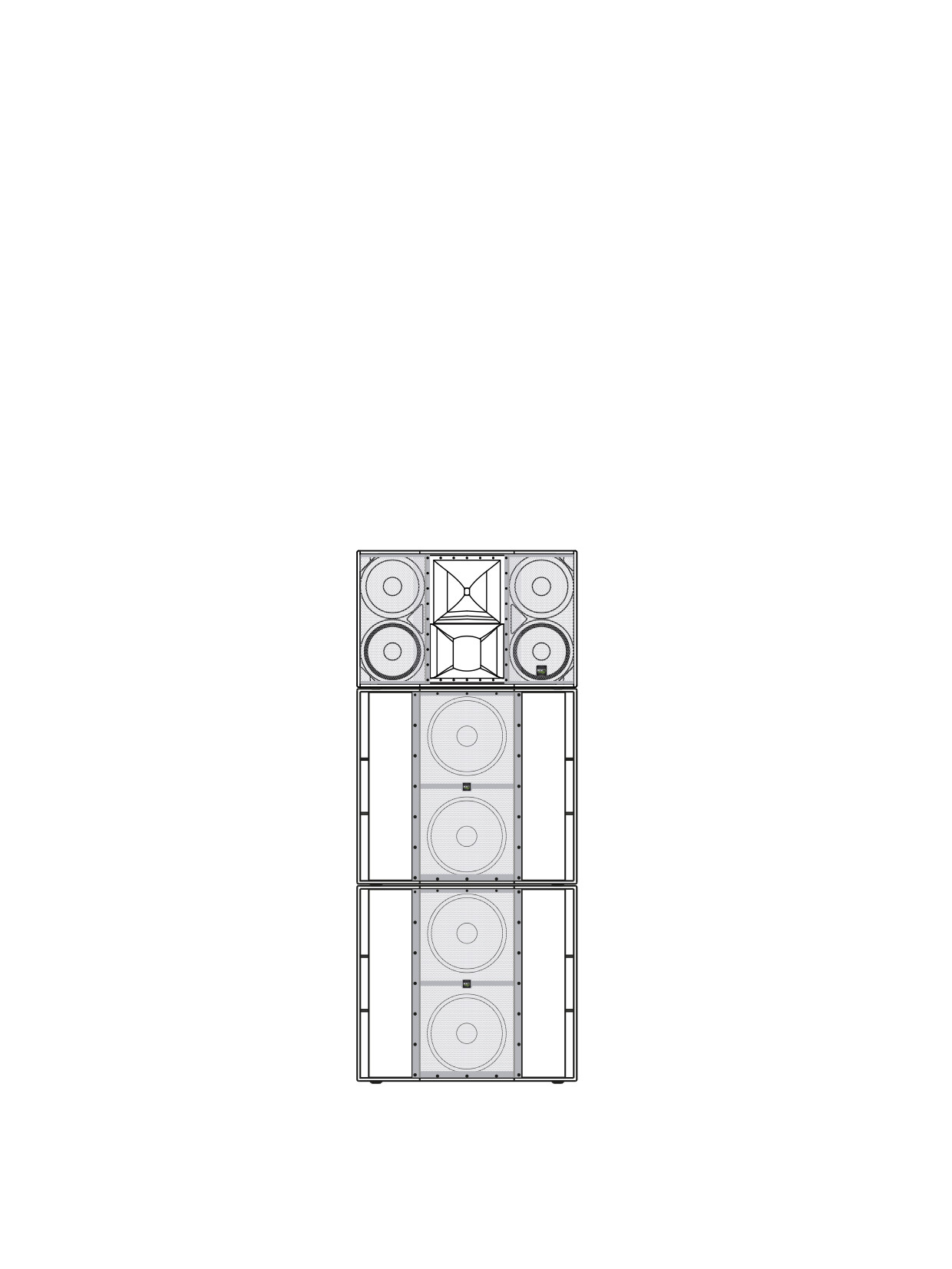

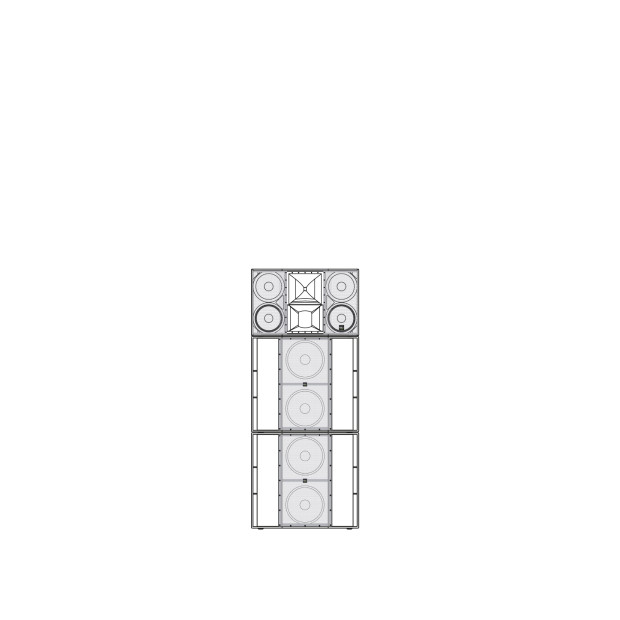

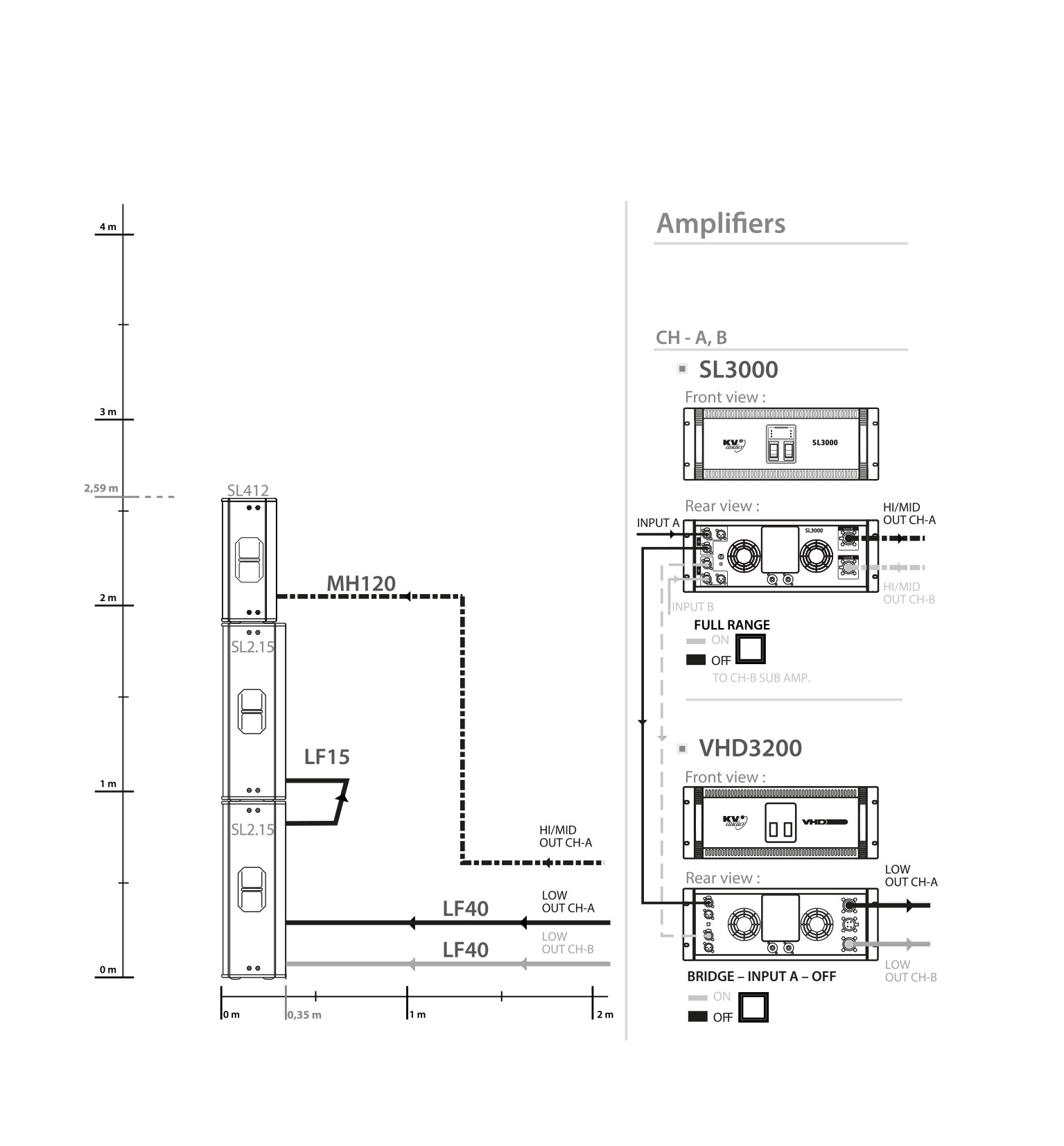

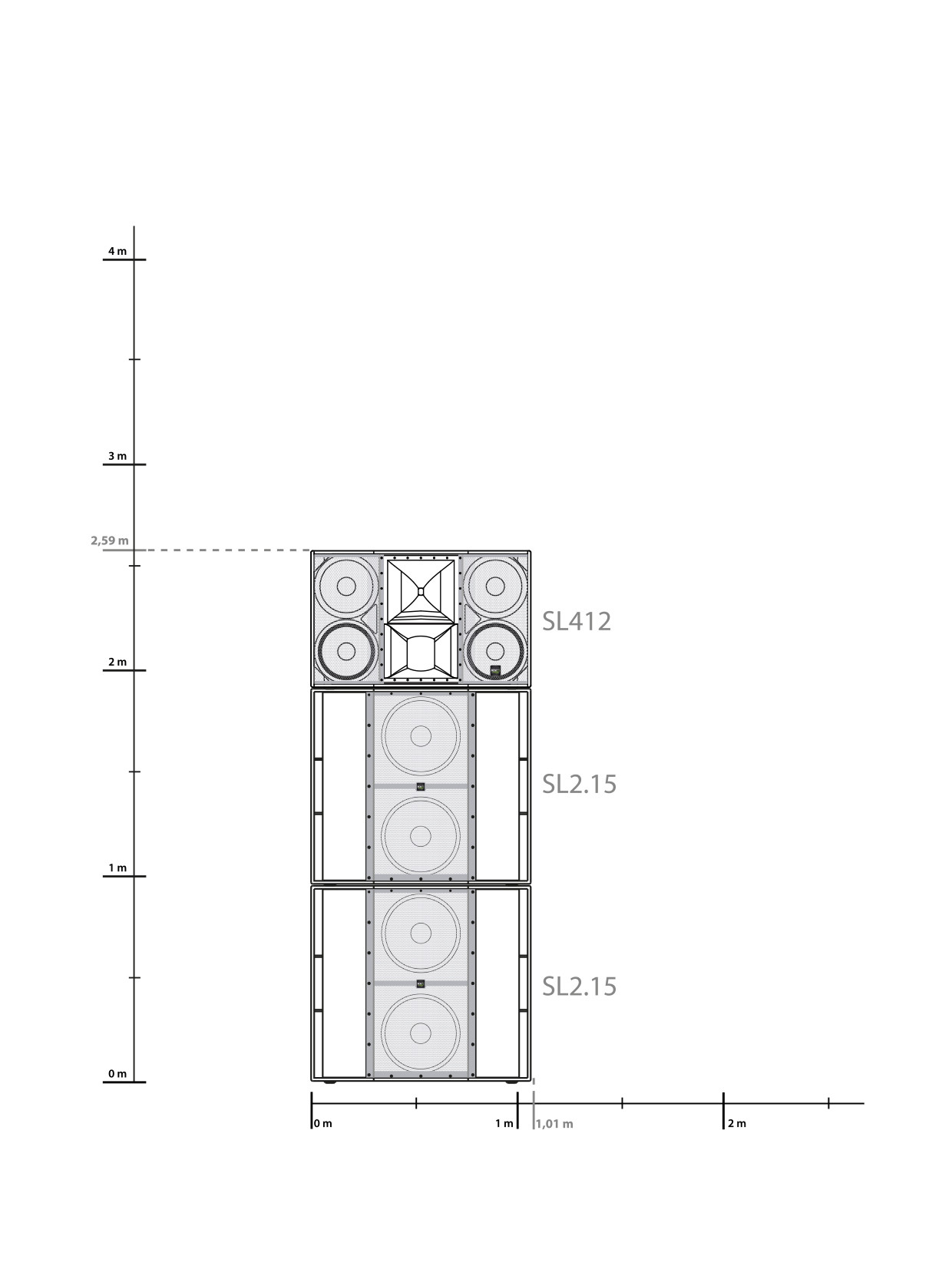

SL - A



Description

• Up to 2000 people • Number of bass cabinets and SUB LEVEL setup - depends on the style of music



Products

CountProductType
2SL412MID-HI
4SL2.15Loudspeaker
1SL3000MID-HI AMP
1VHD3200SUB AMP


Accessories

CountAccessoryTitle
2Cable MH120Cable MH120
2Cable LF15Cable LF15
2Cable LF40Cable LF40


Images

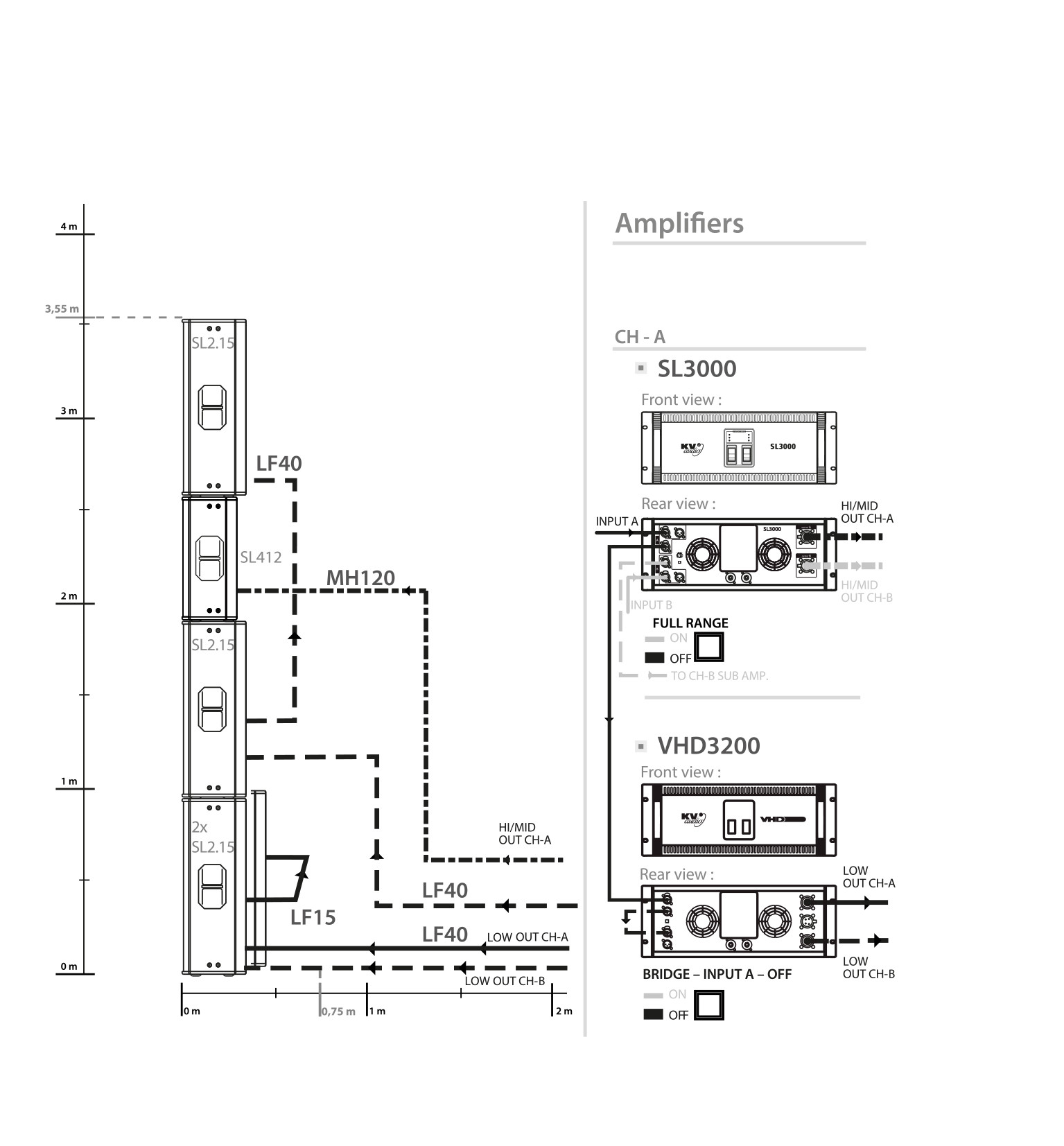

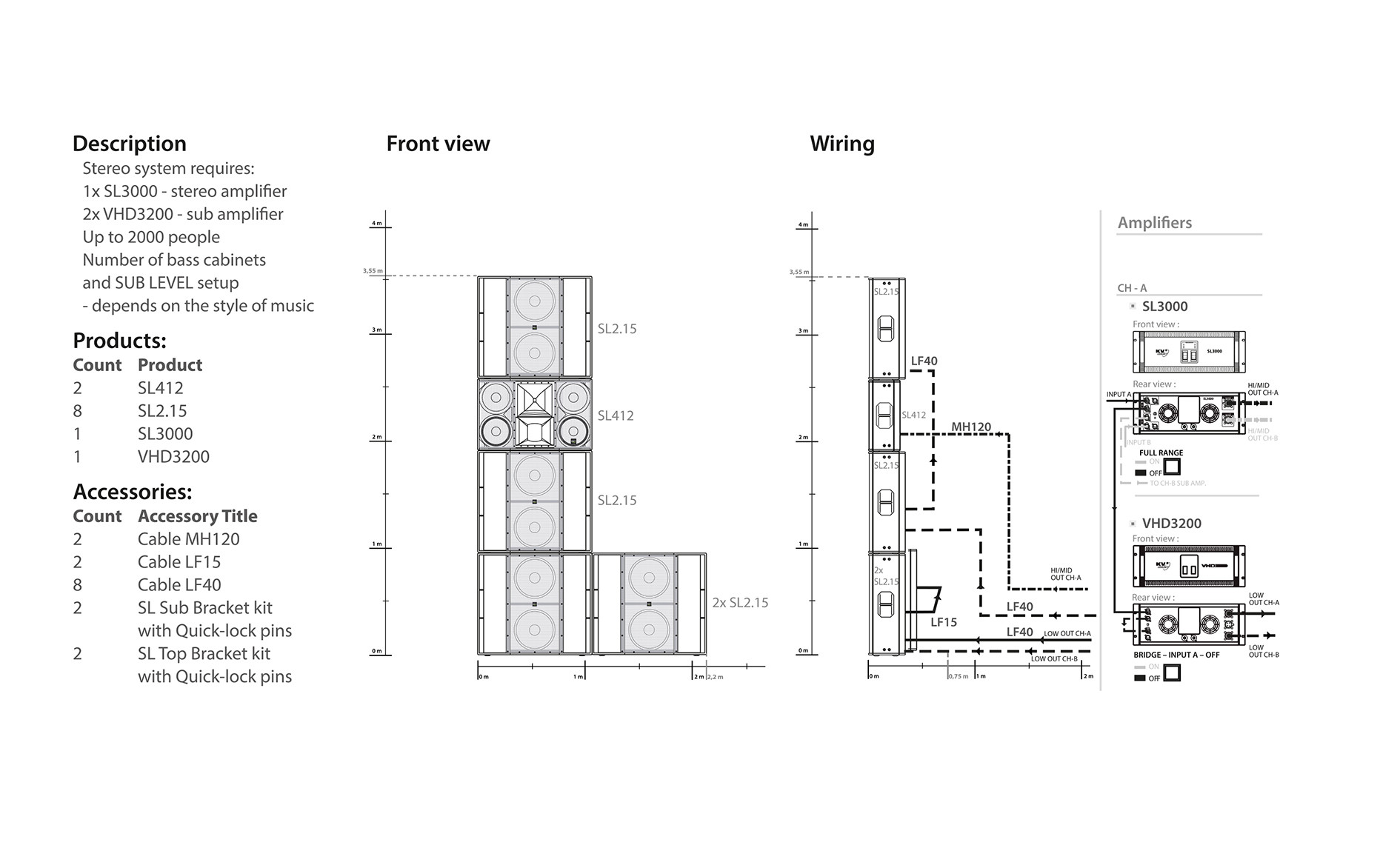

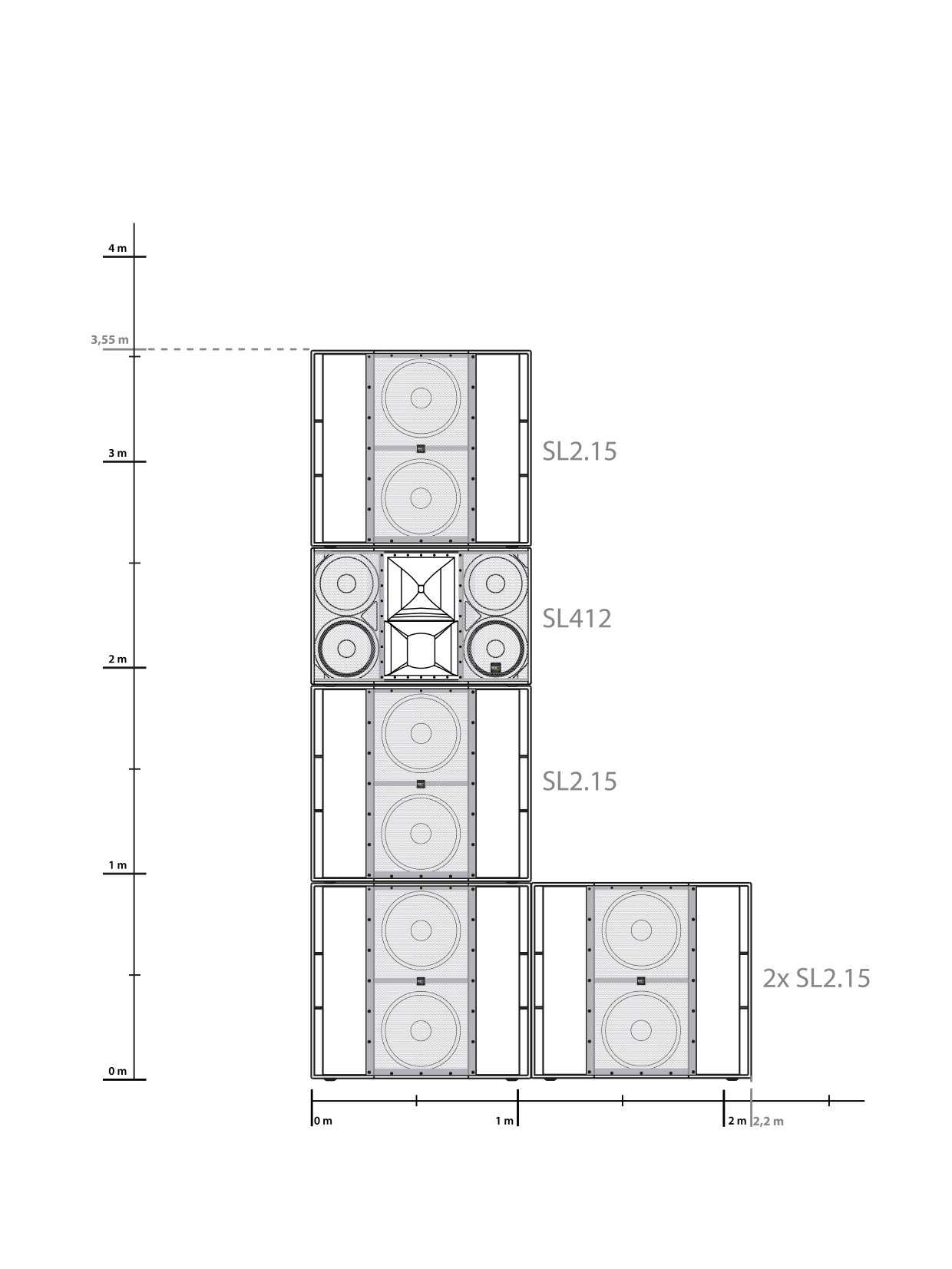

SL - B



Description

• Up to 2000 people • Number of bass cabinets and SUB LEVEL setup - depends on the style of music



Products

CountProductType
2SL412MID-HI
8SL2.15Loudspeaker
1SL3000MID-HI AMP
2VHD3200SUB AMP


Accessories

CountAccessoryTitle
2Cable MH120Cable MH120
8Cable LF40Cable LF40


Images

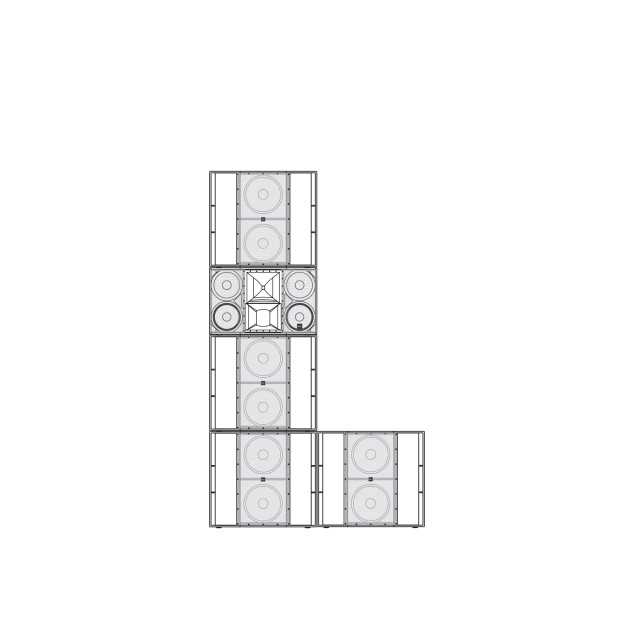

SL - C



Description

• Up to 2000 people • Number of bass cabinets and SUB LEVEL setup - depends on the style of music



Products

CountProductType
2SL412MID-HI
8VHD4.18SUB
1SL3000MID-HI AMP
2VHD3200SUB AMP


Accessories

CountAccessoryTitle
2Cable MH120Cable MH120
4Cable LF15Cable LF15
4Cable LF40Cable LF40


Images

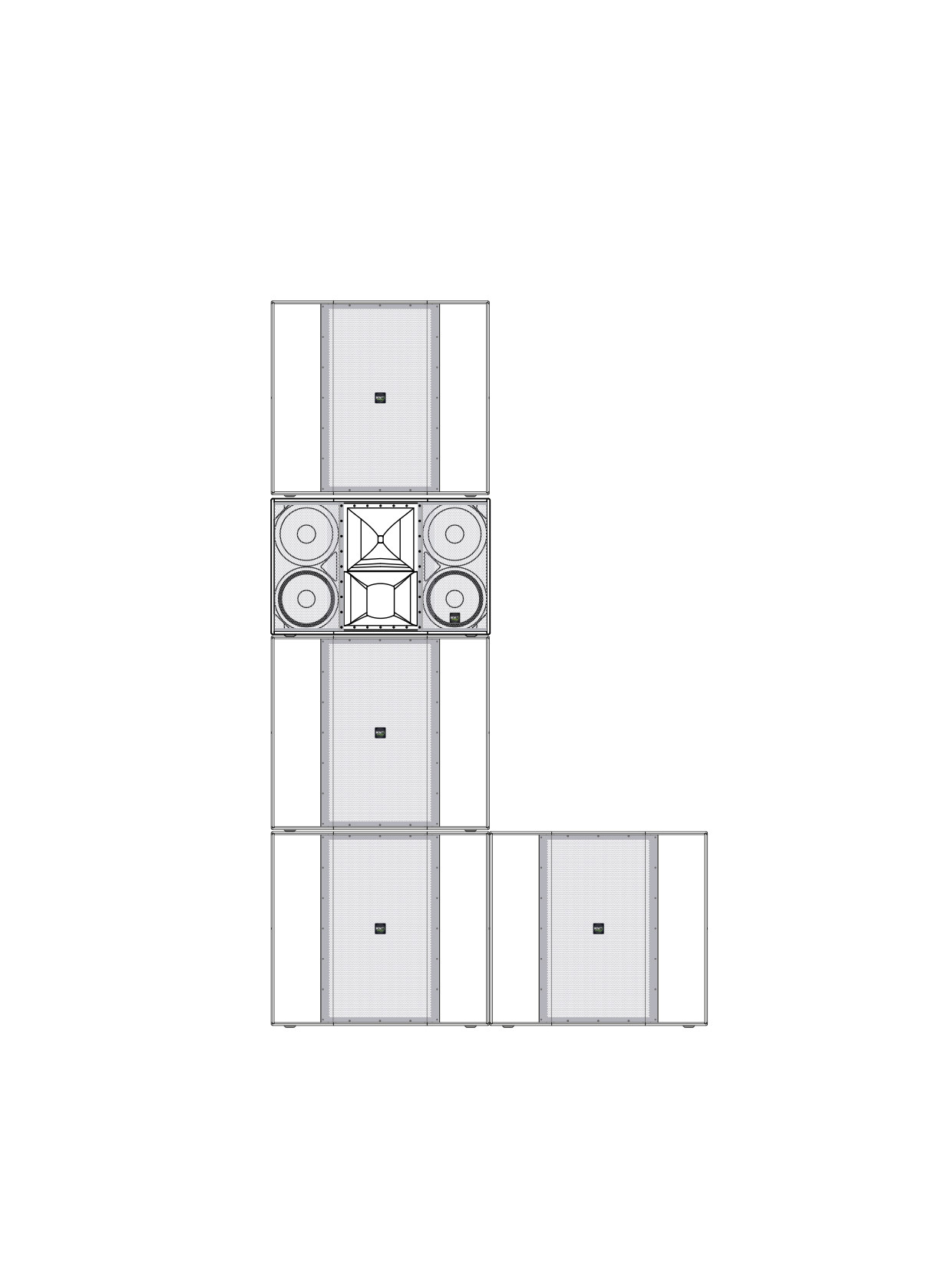

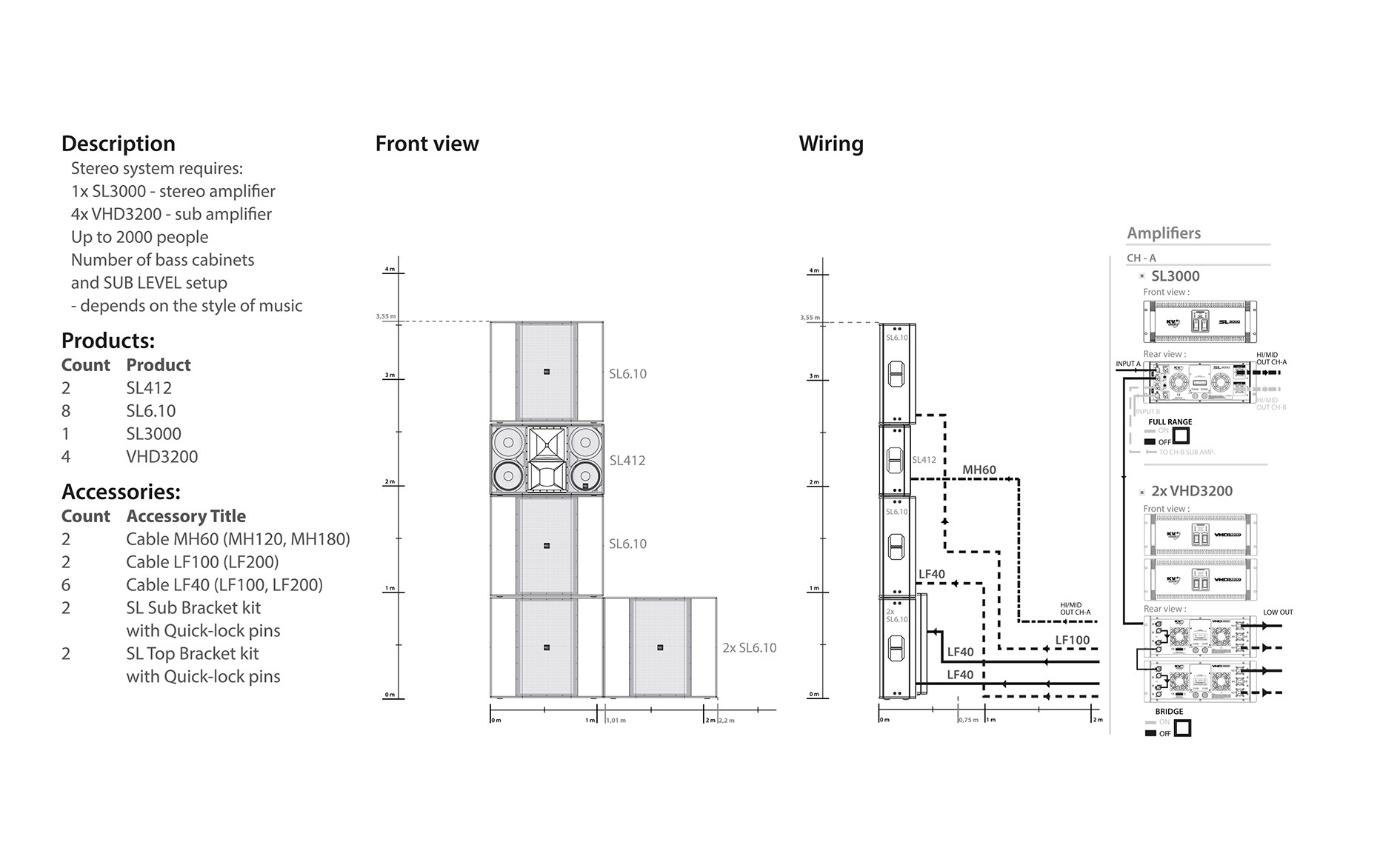

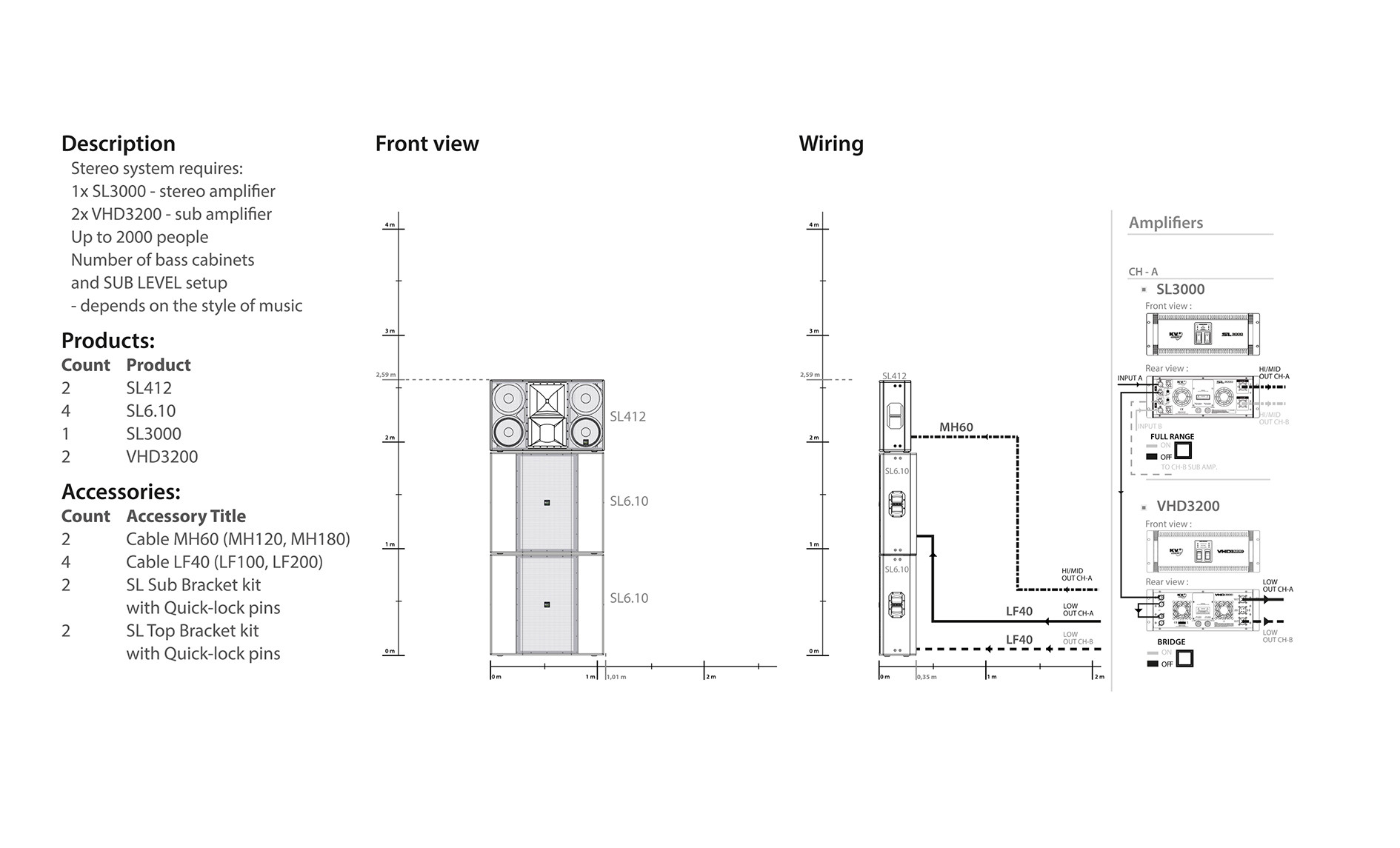

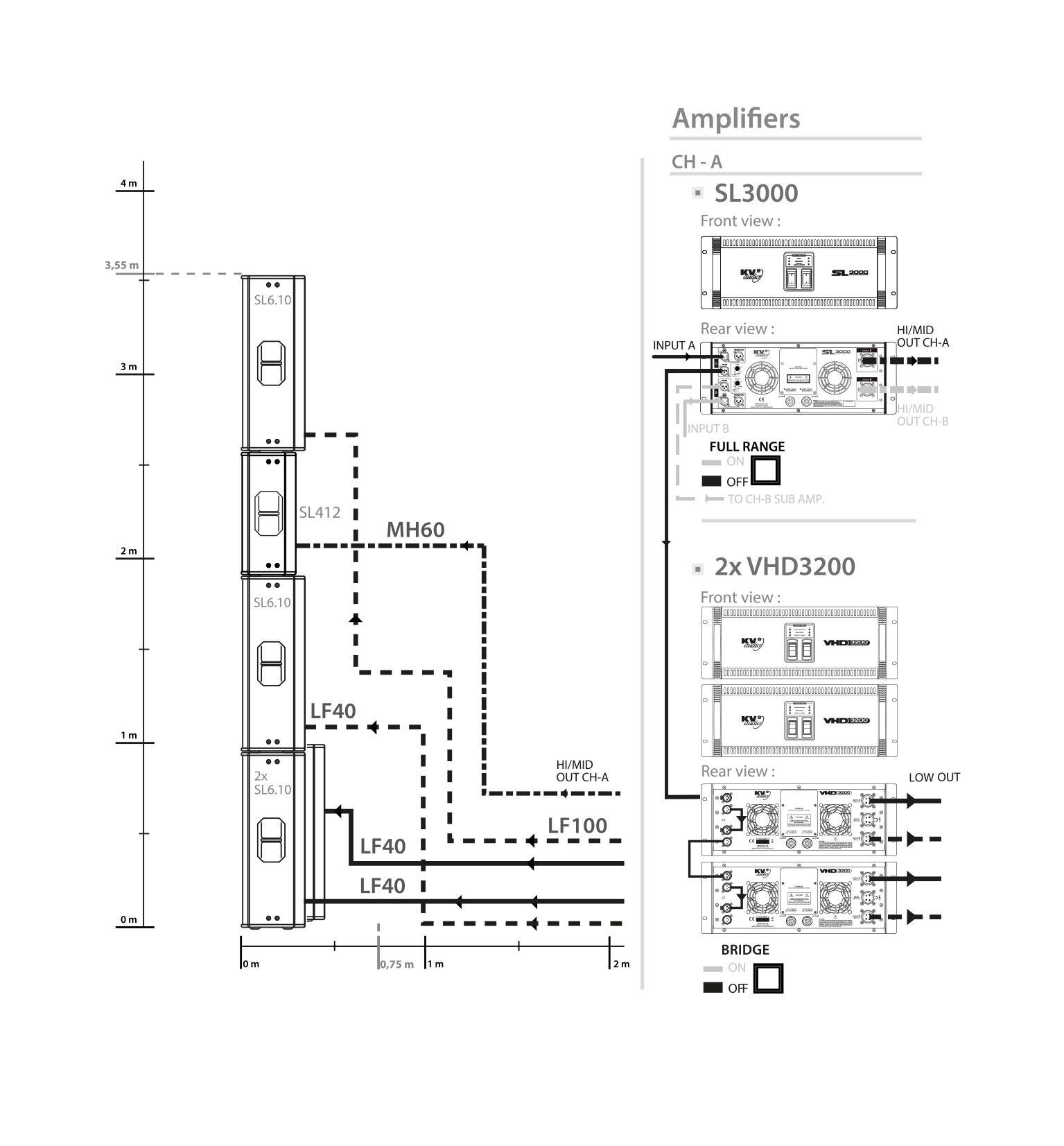

SL - D



Description

• Stereo system requires: 1 x SL3000 - stereo amplifier 2 x VHD3200 - sub amplifier • Up to 2000 people • Number of bass cabinets and SUB LEVEL setup - depends on the style of music



Products

CountProductType
2SL412MID-HI
2VHD2.21ULTRA SUB
1SL3000MID-HI AMP
2VHD3200SUB AMP


Accessories

CountAccessoryTitle
2Cable MH120Cable MH120
2Cable LF40Cable LF40


Images

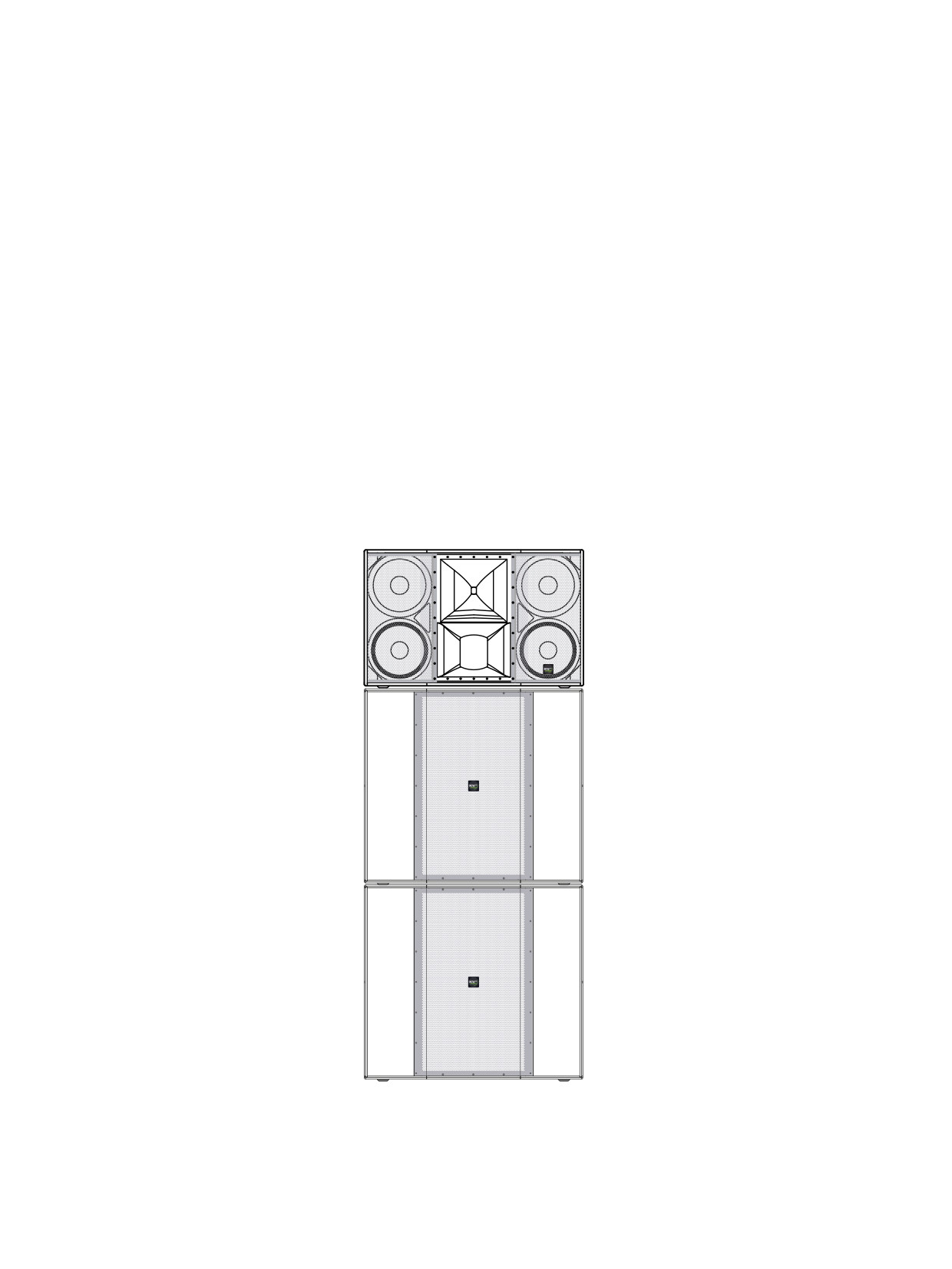

SL-Full range



Description

• Up to 2000 people • Solely for vocal reinforcement and light music playback • One side of stereo system



Products

CountProductType
2SL412MID-HI
1SL3000MID-HI AMP


Accessories

CountAccessoryTitle
2Cable MH120Cable MH120


Images
